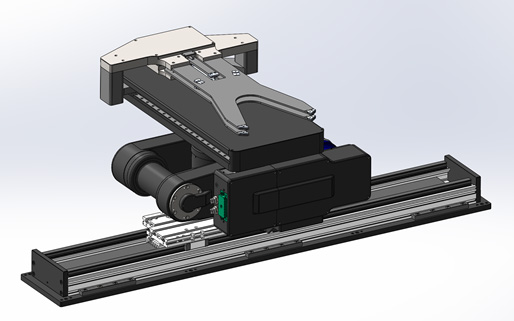

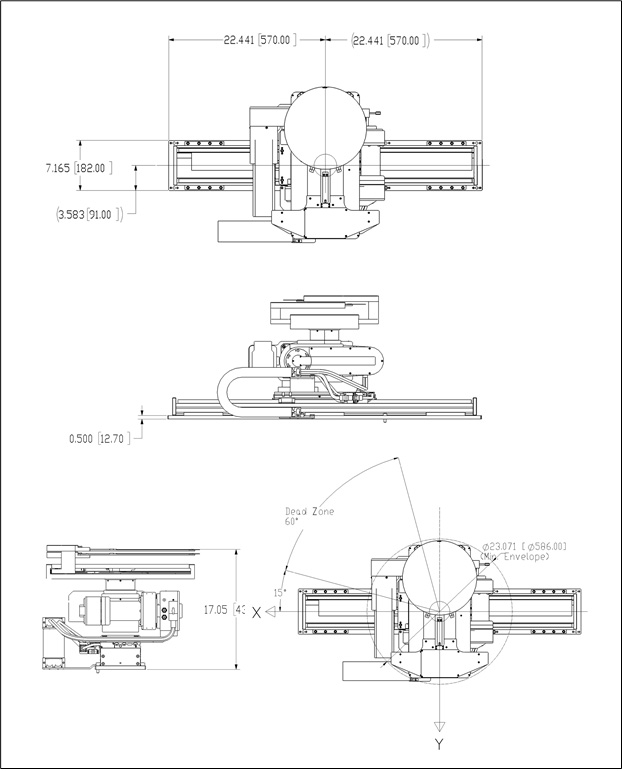

GB14 Wafer Handling Robot
GB14 Wafer Handling Robot


GB14 Wafer Handling Robot

  • Compact, high performance wafer handler for 300 mm wafers.
  • Direct-drive swapping mechanism with minimized height
  • Maximized ratio between the effective vertical stroke and the robot-height
  • Fast wafer swap (< 2.8 sec) under specific conditions
  • Designed for wafer handling within vertical profile (minimized vertical size) processing tools
  • An excellent automation choice for multi-layer processing tools with stacked process modules
  • Edge-gripping

Specifications:

Configuration
Wafer Size 300mm
Degrees of freedom
(Number of axes)
5
Axes X, Z, T, R1, R2
End Effectors Types Vacuum
Wafer Mapping N/A
Physical Properties
Minimum robot height
(at the lowest Z-axis position)
433 mm
Maximum robot height
(at the highest Z-axis position)
933 mm
Effective Range of Motion X: 1390 mm
Z: 500 mm
T: 290 degrees
R1: 449 mm
R2: 449 mm
Performance
Max Payload 1 kg
Repeatability X: 0.1 mm (3σ)
Z: 0.1 mm (3σ)
T: 0.01° (3σ)
R1: 0.1 mm (3σ)
R2: 0.1 mm (3σ)
Environment
Cleanliness
ISO Class 2 Compatible
Standards Compliance
Applicable Directives/Standards Machine Directive 89/392/EEC
Low Voltage Directive 73/23/EEC
89/336/EEC(EMC)
SEMI S2-93A
Standards to Verify Compliance EN 60204-1:1997
EN 55011
EN ISO 12100-2:2003
RIA R15.06:1999
Reliability
Reliability per SEMI E10 MCBF >15M
MTBF >100000 h
